Adaptive Logic Module
17
Adaptive Logic Module
Arria V devices use a 28 nm ALM as the basic building block of the logic fabric.
The ALM, as shown in following figure, uses an 8-input fracturable look-up table (LUT) with four dedicated
registers to help improve timing closure in register-rich designs and achieve an even higher design packing
capability than previous generations.

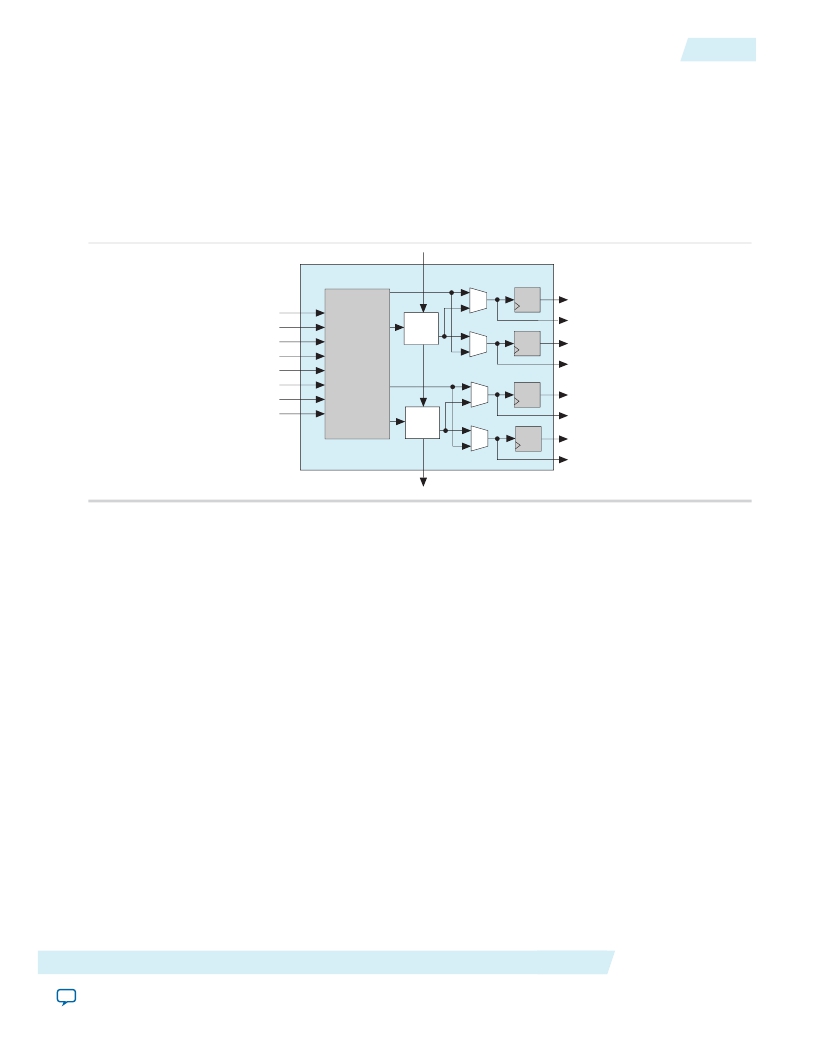

Figure 7: ALM for Arria V Devices
FPGA Device
Reg
1
2
3
4
5
6
Adaptive
LUT
Full
Adder
Reg
7
8
Full
Reg
Adder
Reg
You can configure up to 50% of the ALMs in the Arria V devices as distributed memory using MLABs.
Related Information
Embedded Memory Capacity in Arria V Devices on page 20
Lists the embedded memory capacity for each device.
Variable-Precision DSP Block
Arria V devices feature a variable-precision DSP block that supports these features:
? Configurable to support signal processing precisions ranging from 9 x 9, 18 x 18, 27 x 27, and 36 x 36
bits natively
? A 64-bit accumulator
? Double accumulator
? A hard preadder that is available in both 18- and 27-bit modes
? Cascaded output adders for efficient systolic finite impulse response (FIR) filters
? Dynamic coefficients
? 18-bit internal coefficient register banks
? Enhanced independent multiplier operation
? Efficient support for single-precision floating point arithmetic
? The inferability of all modes by the Quartus II design software
